DNE Cobot Welding Cart

The DNE Cobot Welding Cart utilizes an ABB collaborative robot (Cobot) which is an industrial robot arm designed for operator safety, ease of use and programmability. The Cobot design and operating speeds allow for use in areas with minimal safety guarding which would be prohibitive to more conventional industrial robots.

The operator can load and unload from a single station that is shared with the robot envelope. This allows the worker the ability to address high-mix, low-volume operating scenarios in a small footprint.

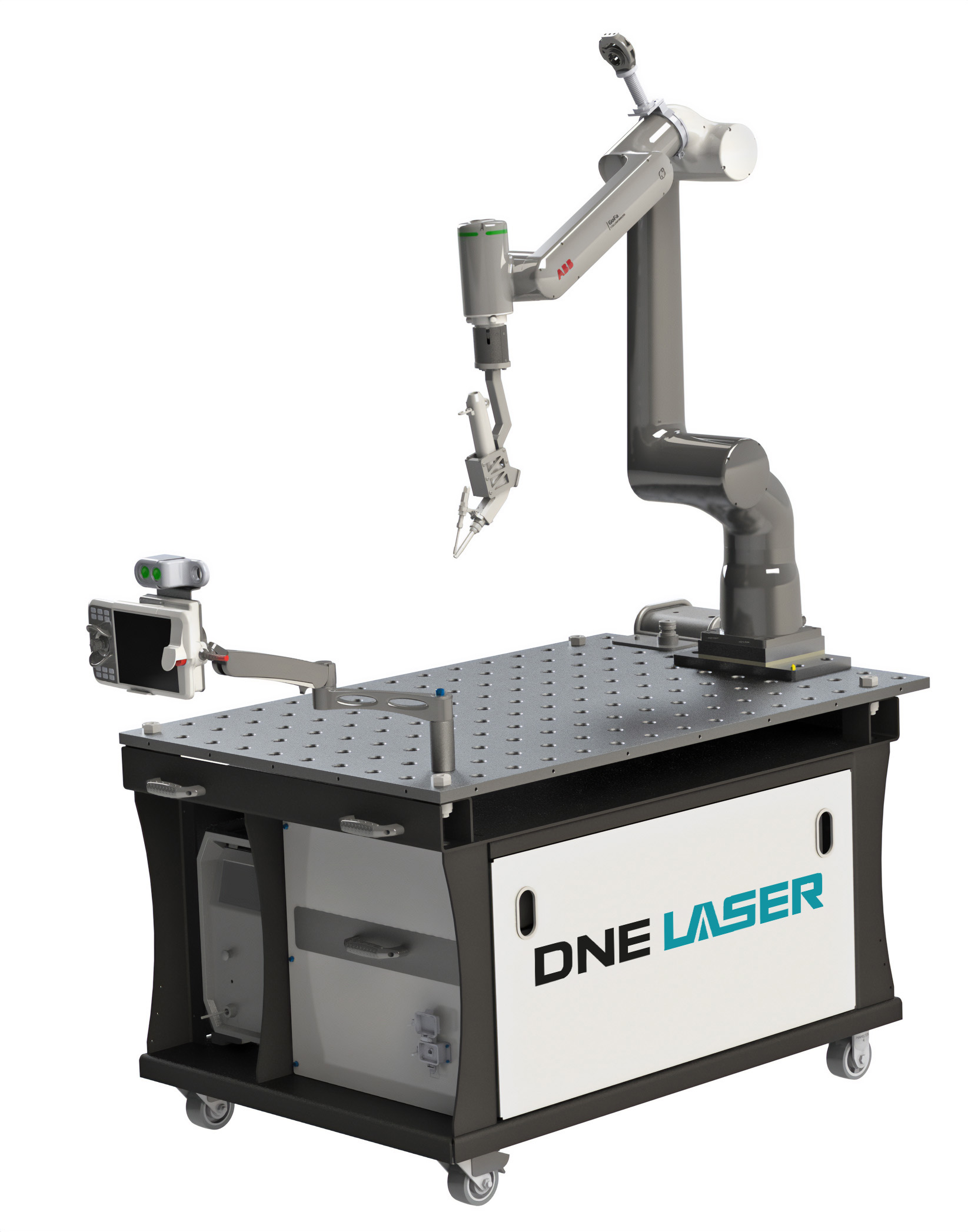

DNE Cobot Welding Cart

Machine Overview

Powder-coated steel frame

Integrated spool holder

Swing arm for pendant

Integrated robot, controller and welder within the cart

Integrated Bluco Modular TableTop

Casters w/ wheel locks for easy movement

Expandable controller for additional options and accessories

Single power drop disconnect 240V single phase

1-year warranty included

ABB GoFa CRB 15000 Cobot

Superior power and force limiting performance through integrated torque sensors

Safe robot design - rounded geometry, no pinch/trap points

Safety certified Category 3, PL d

TCP speed of up to 2.2m/s- GoFa is faster than other cobots in its class

1050mm reach

Press Die-Casting Aluminum Gantry

This software provides an intuitive user interface to teach the robot new parts and run production

Optional Longer arm GoFa 10

High-Speed & Precise Performance – GoFa offers industry-leading 2.2 m/s TCP speed, 0.02mm repeatability, and 1.62m reach, outperforming comparable cobots in efficiency and precision.

Ultra Accuracy Feature – Delivers 10x greater precision, with 0.03mm path accuracy and 0.1mm absolute positioning, ideal for laser welding, 3D printing, and metrology applications.

Advanced Safety & Collaboration – Easy Setup & Smart Programming – Features intuitive apps, lead-through programming, and RobotStudio® simulation, ensuring quick deployment and up to 99% match between simulation and reality.

Energy-Efficient & Reliable – Powered by OmniCore, reducing energy consumption by up to 20%, while meeting Category 3, PL d safety standards for reliable operation.
